8012 Series Tube Expanders

A great choice for larger diameter tubes and thick tubesheets

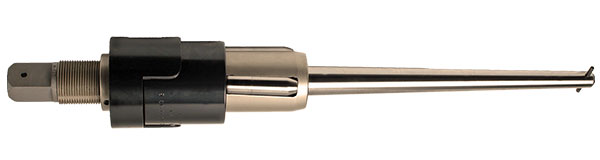

8012 Series Tube Expander

8012-Series-3-Tube-Expander

Product Features

The 8012 series tube expander is a great choice for larger diameter tubes and thick tubesheets in air-cooled heat exchangers, fin-fans®, boilers and refinery tubes.

Tube sizes range from 1 3/4" 8 gauge to 5" 16 gauge and roll depth adjustable: STD reach from 1/2" to 4" - 6" reach from 1/2" to 6" - 8" reach from 1/2" to 8".

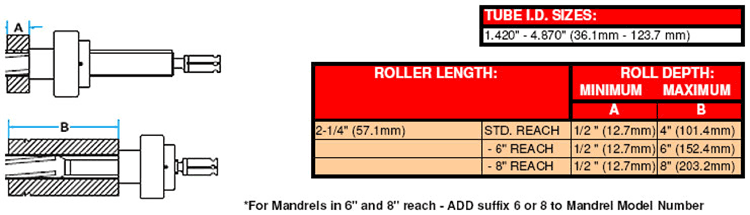

8012-series-tube-expander-chart-1

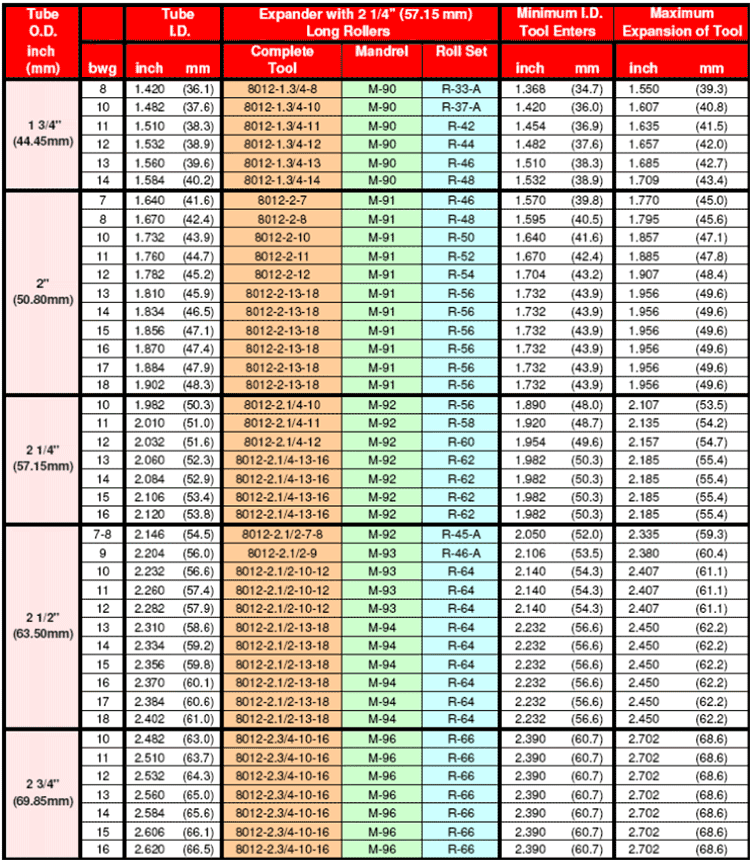

8012-series-tube-expander-chart-2

FIN-FAN is a Registered Trademark of Hudson Products Corporation
