Industrial Blind Flanges

Custom and Standard Blind Flanges (Pipe End Caps, Weld Caps) - Available for Sale or to Rent

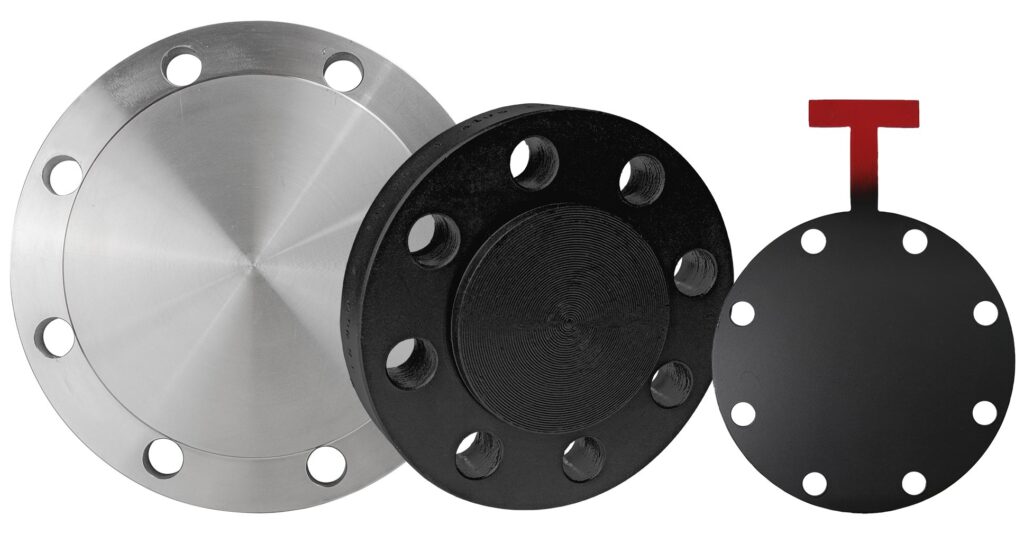

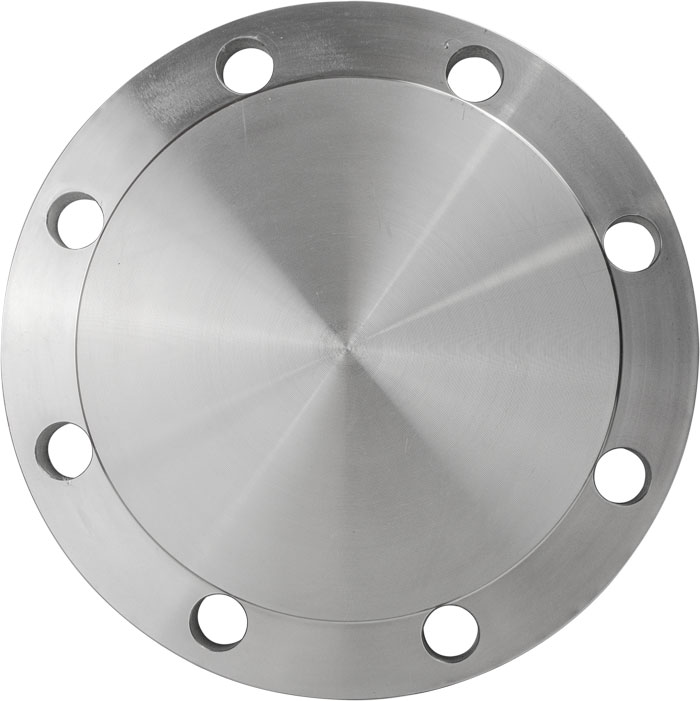

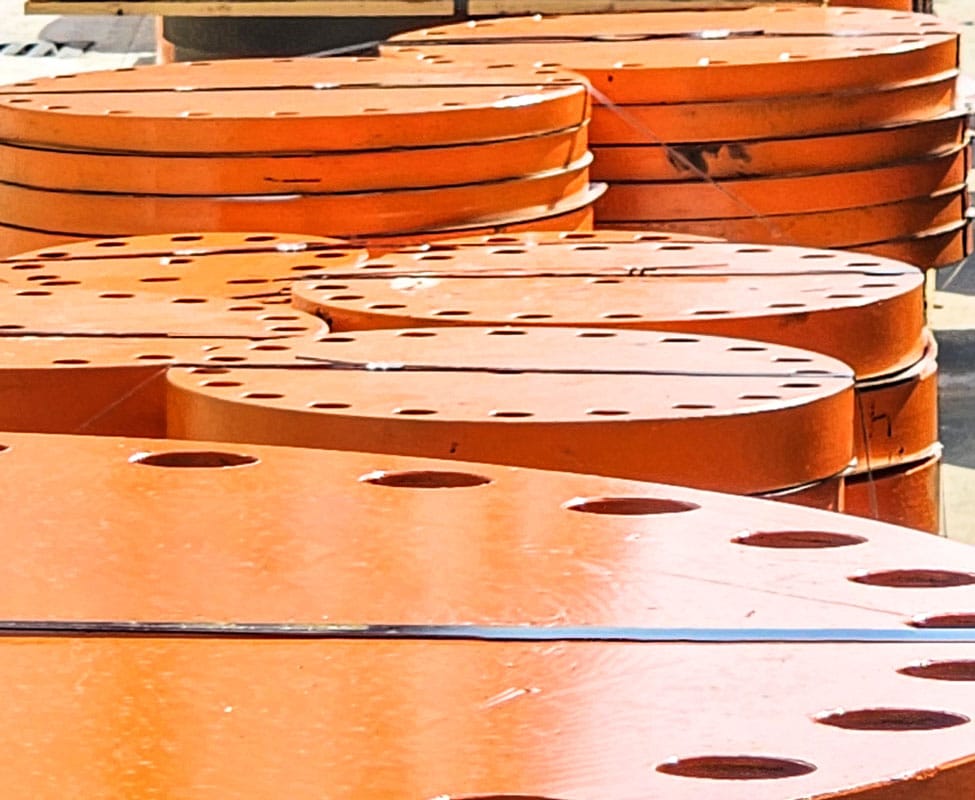

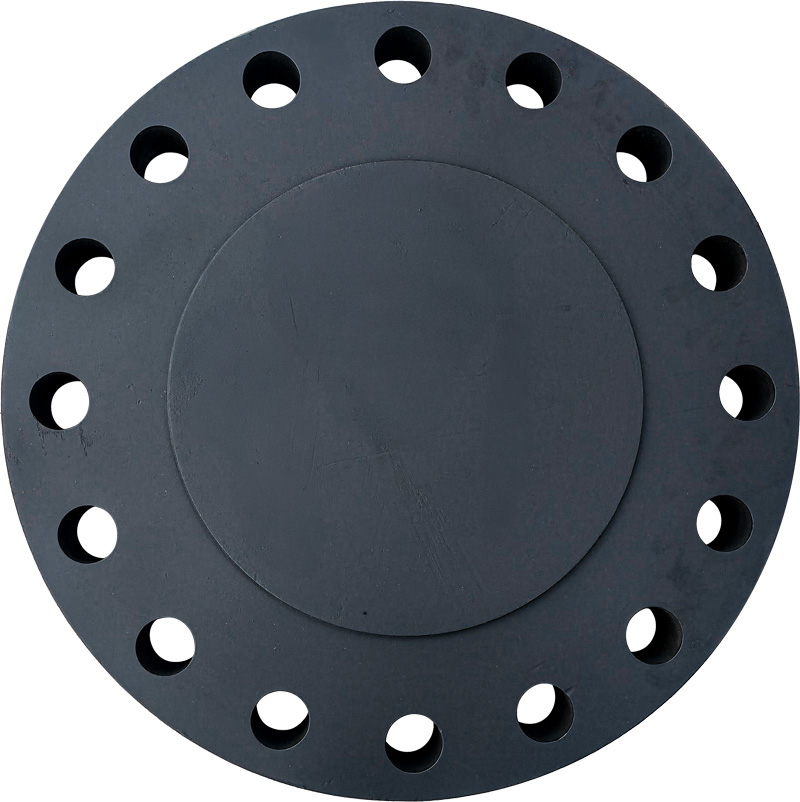

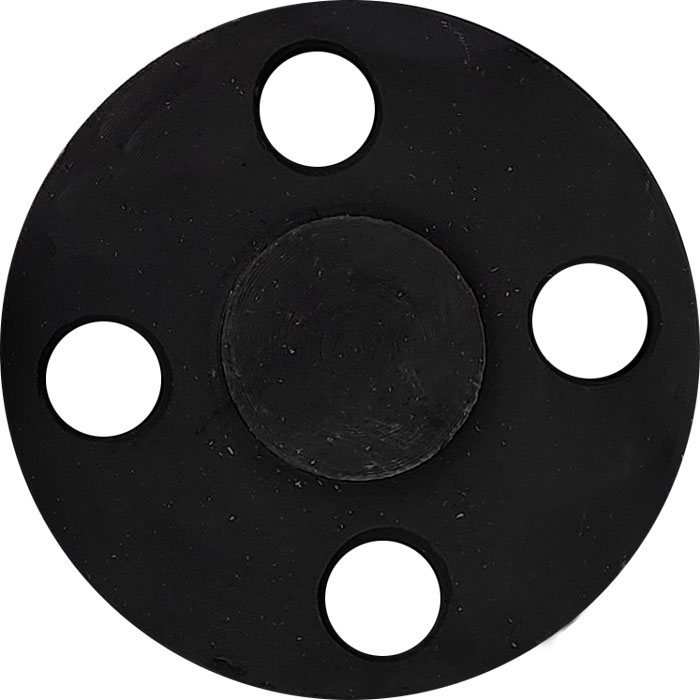

We stock a large inventory of carbon steel and stainless steel blind flanges, also called pipe end caps or weld caps, in sizes that range from 1/2" to 96." Additionally, we will manufacture in special stainless steel grades, hastelloy, nickel alloy and alloy steel upon request. To combat corrosion, in addition to our standard flat black painted coating, our carbon steel products can be optionally galvanized, zinc plated, or yellow zinc chromate plated upon request.

Uses:

Blind flanges are used to seal the end of piping systems or pressure vessel openings. They are commonly used for testing the flow of gas or liquid through a pipe or vessel, in addition to allowing for easy access to the pipe in case work must be done inside the line. Often times they are used in high pressure applications.

Specifications

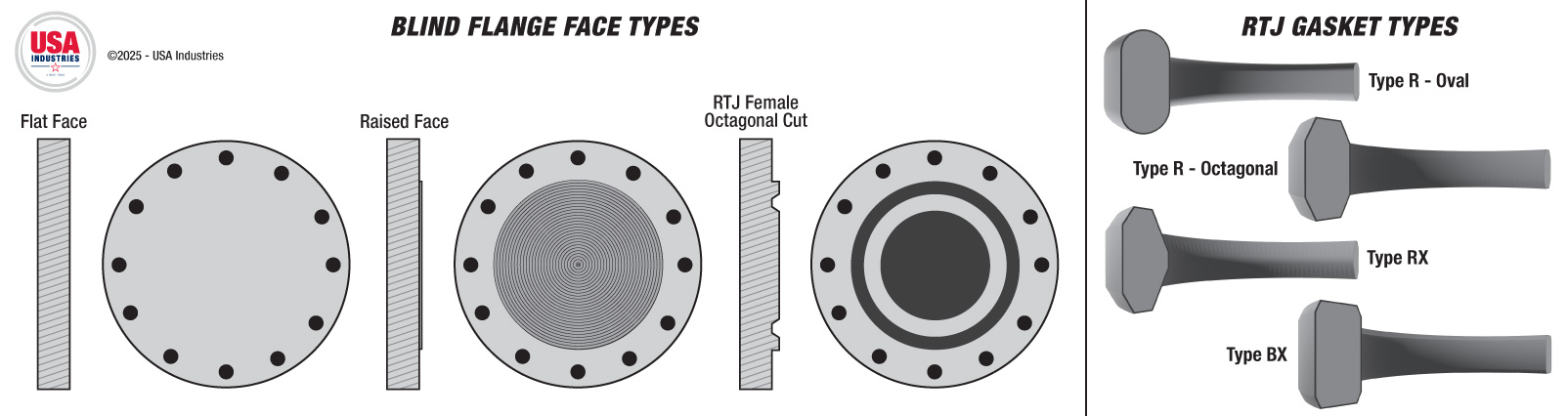

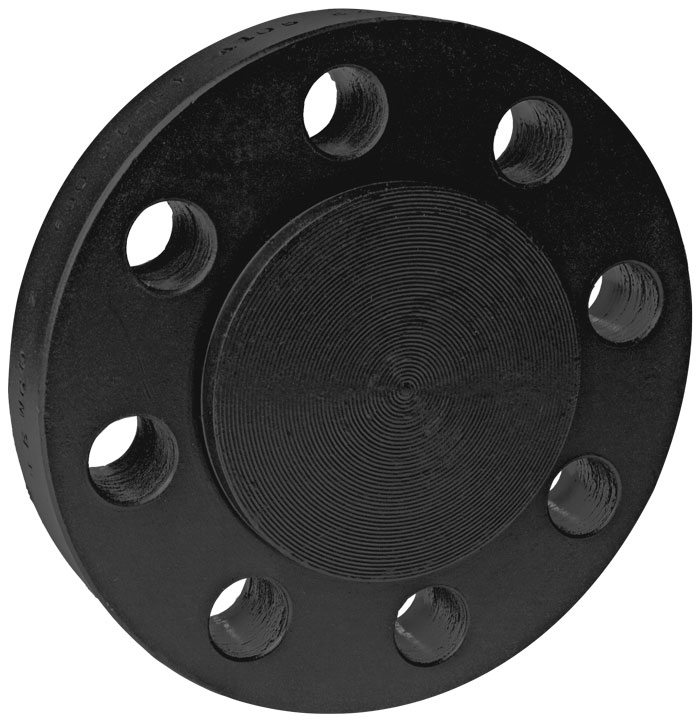

Our flanges can be provided in all material grades, specifications, and ASME ratings from 150# to 2500#. They are typically provided with raised face or Ring Type Joint (RTJ) facing. When a raised face is necessary for your, our standard height is 1/16" for blind flanges under 400#. For flanges of 400# and up, the standard raised face height is 1/4". Vents are available in the middle, top, or bottom of your flange and with socket weld or NPT vent connections.

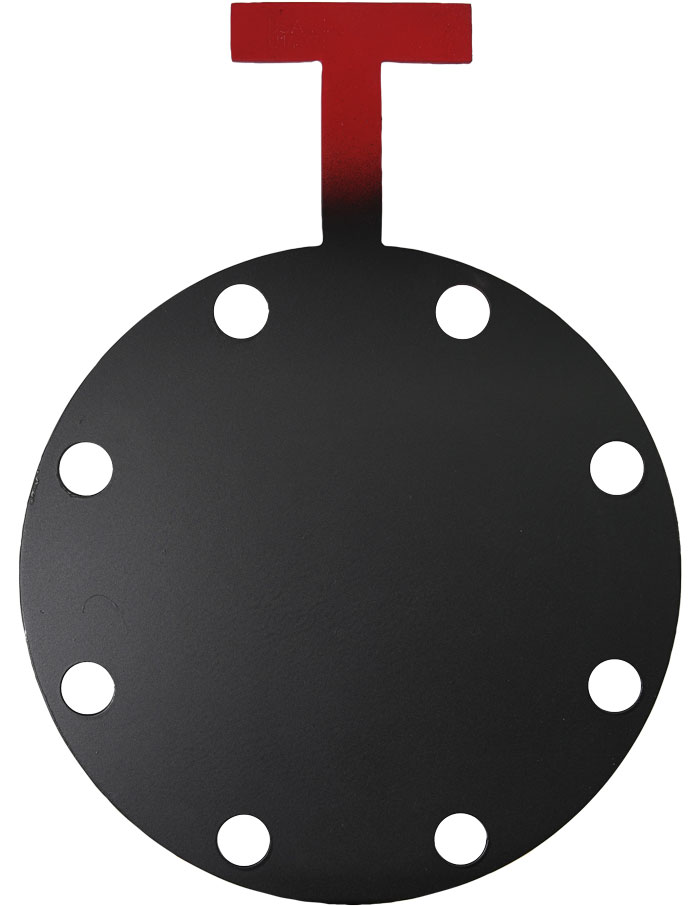

USA Industries also manufactures and stocks industrial paddle blinds and will ship 24/7, 365 days of the year. Blinds are provided for either Series A (MSS SP44) or Series B (API 605), meeting ASME B16.47 & B16.48/ANSI B16.5 and B16.2 specifications. All other blind specifications A182, A350, B160, etc. will be provided upon request for purchase.

PRODUCT FEATURES:

  • Stocked sizes from 1/2" - 96"

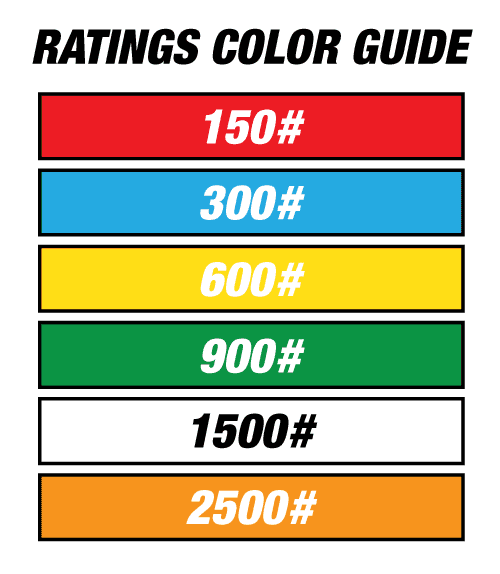

  • Class 150#, 300#, 600#, 900#, 1500# & 2500#

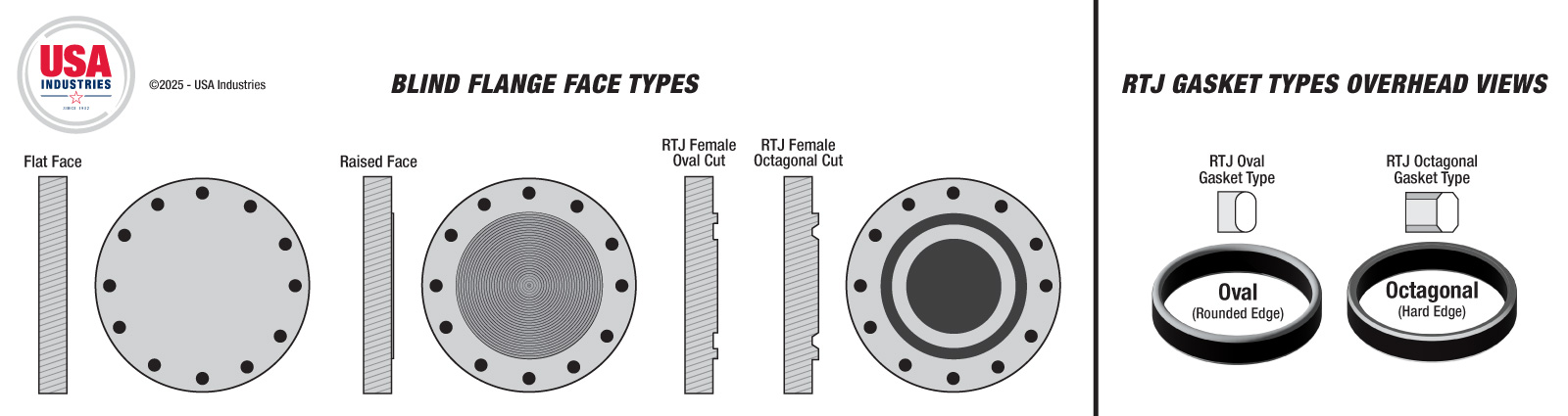

  • Raised Face or RTJ Surfaces
  • Carbon Steel & Stainless Steel
  • Galvanized and Zinc Plated Coatings Available
  • Socket Weld and NPT Vent Connections Available
  • Meets ASME B16.47 & B16.48/ANSI B16.5 and B16.2 specs
  • Will customize to your requirements
  • Same Day Ship/Delivery (Local)

NEED A BETTER SEALING SURFACE?

Request an RMS Finish!

RMS-Finish
USA Industries, Inc Blind Flange Side Panel Image

RELATED PRODUCTS

Frequently Asked Questions

No. Blind flanges are used to "close off" the line when bolted to a flange, which is welded to a pipe, heat exchanger, vessel, etc...

We can custom manufacture or modify any of our products to meet your specialty needs.

Yes. We can produce our products to any custom specification.

This only applies for line sizes greater than 24". Call us and we'll be happy to help you determine it!

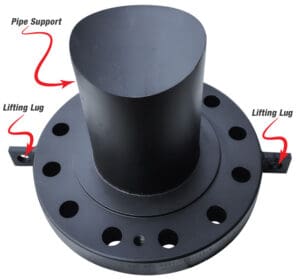

Yes, just let us know if you want the lifting lug on the flat face of the blind flange (typically used when the flange is in a horizontal plane) or on the outer edge (typically used when installing in a vertical plane).

The most common material is A105 grade carbon steel, however we can produce our blinds in any material, grade or alloy you require.

Yes, we can supply the nuts, bolts, and gaskets if you need them.

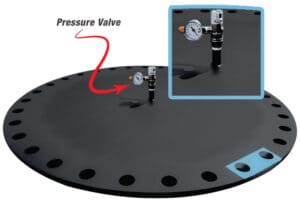

Yes, we can provide your flange with one or more vents. Vents are available in the middle, top, or bottom of your flange and with socketweld or NPT vent connections.
